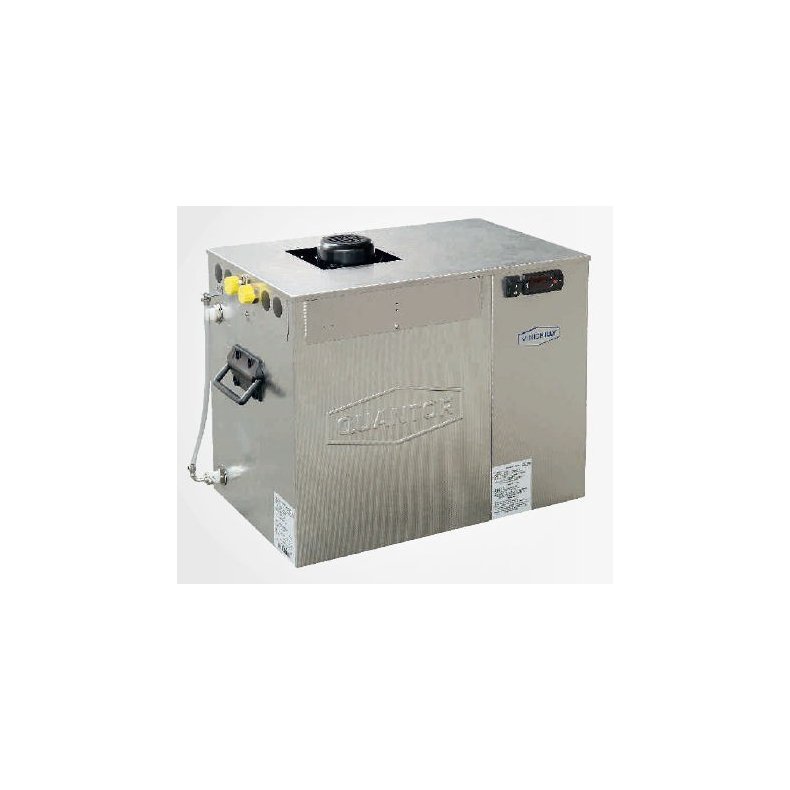

Glycol køler Minichilly 17, 1,7 kw fra Quantor med pumpe

Tysk kvalitet, 0,5 - 1,7 kw. Minichilly 17 er med pumpe. Ikke lagervare, 7 - 10 dages leveringstid.

MiniChilly glykolkøleren er en ideel løsning til mikrobryggerier, hobbybryggere og mindre vingårde. På grund af den enkle konstruktion er enheden let at fylde og installere.

Kompakt køleenhed, fremstillet i Tyskland
Til lave vandtemperaturområder ned til -6°C (21,2°F)
Køling af gærings- og lagertanke
Køling af most og vin til forrensning og vinstabilisering
Køling af rum og lagerhaller - med ekstra ventilatorkonvektor

Description

The MiniChilly glycol chiller is an ideal solution for micro-breweries, hobby brewers and smaller wineries. Due to the simple construction the unit is easy to fill and to install.

• Cooling of fermentation and storage tanks
• Cooling of must and wine for pre-clearing and tartaric stabilisation
• The unit has a cooled glycol water reservoir and is equipped with stainless steel hose barbs for connecting temperature control kits with submersible pumps
• Cooling of rooms and storage halls - with additional fan coil

Specifications:

• Compact cooling unit, made in Germany
• For low water temperature ranges down to -6°C (21.2°F)
• Thermostatic controller (Carel)
• Complete cooling water circuit containing a water tank
• Evaporator made of stainless steel
• Fill level display and tank draining outside the unit
• Black clad steel housing
• Works with submersible pump sets for tank control (not included)
• Refrigerant R134a
• Ice bank built at below 0°C water temperature
• It is required to add glycol (30 - 35%) to the cooling water by outlet temperatures below 0°C (to prevent building of an ice bank)
• Fittings 3/8“ for plastic tubes of individual pumps
• Solid wheels with brakes, mobile (models 05, 09, 17)
• Universal C19 plug
• On/off switch
• Water level sight tube
• Grooves for individual pump cable protection
• Safety inner separation water side from electric side

  The MiniChilly glycol chillers are high quality, compact cooling units for professional use.
  The chillers are made using stainless steel and are easy to install and use.

  Manufactured in Germany by WTG-Quantor.

  The chillers features an integrated pump with a stirring function which ensures an even temperature.

  The MiniChilly 17 The MiniChilly 17 is recommended for up to 8 ea. 150-liter fermentation tanks of which 3 are cold crashed, or up to 4 ea. 300-liter fermentation tanks of which 1 is Cold Crashed.

  Specifications:
  - Controller: EWplus 961
  - Power connector: Schuko - C19
  - Power: 490W (2/3 HP)
  - Refrigerant: R290 (Propane)
  - Cooling capacity @ 0°C: 550W (1877 BTU/hr)
  - Cooling capacity @ 15°C: 900W (3069 BTU/hr)
  - Tank volume: 27 liter
  - Size without packaging: 640x380x520mm
  - Size with packaging: 790x520x650mm
  - Weight included packaging: 36 kg



  Skriv til os for at få tilsendt brochure.
