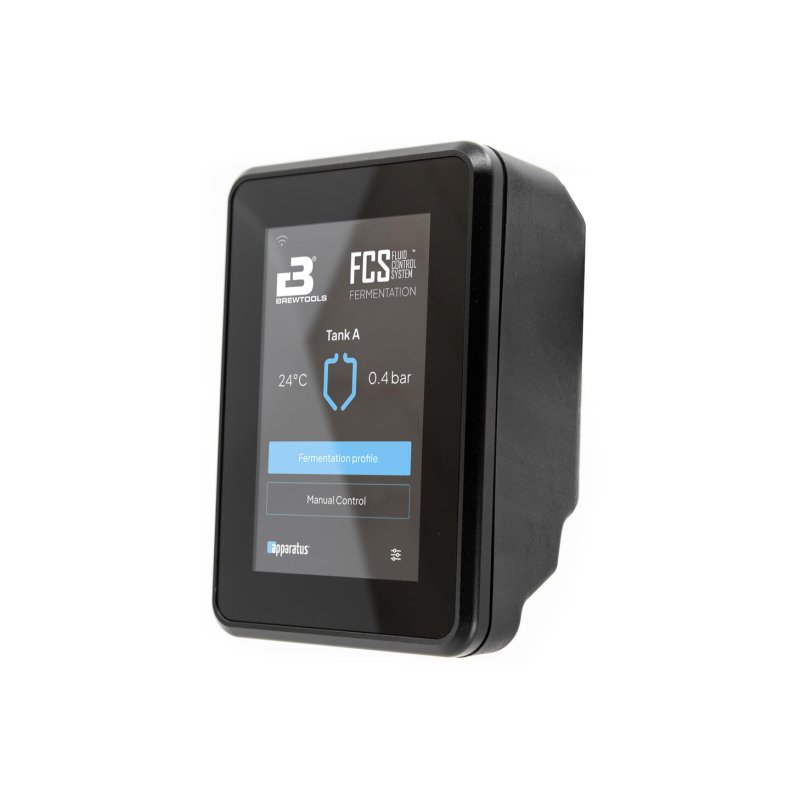

Brewtools - FCS One DC 24V, 2x CAN, 2x Relay og 1x Temp

1.999,00 DKK

FCS One is designed for those of you that want a simpler setup and don't need more than 2 CAN ports and 2 relays.

The DC version has 2 relay outputs (LP12) which can be used for cooling, heating, gas out, gas in ++
The CAN ports can also be programmed as 24V outputs using an adapter (7713833).

More information: https://docs.brewtools.com/user-manuals/fcs-fluid-control-system

Specifications, display unit:
- XTensa LX7 dual core MCU, 240 mhz
- WiFi 802.11 b/g/n (kun 2.4ghz)
- Bluetooth 5 (LE)
- 5" IPS display

Spesifikasjoner built-in I/O:
- 2 CAN bus + 24V
- 1 Temp sensor (RTD PT1000)
- 1 DC 24V power input
- 2 DC 24V power output

Power supply and ball for the ball mount system is included.
