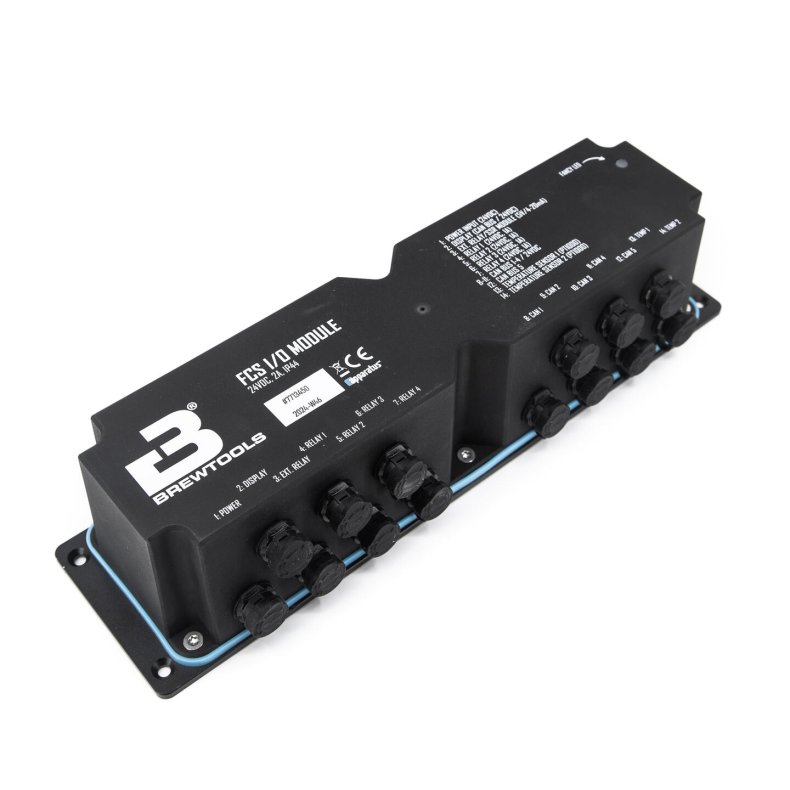

FCS I/O Module, 24V 2A - 2x RTD, 5x CAN og 4x Relay

1.749,00 DKK

The I/O Module is the heart of the FCS system. It connects all sensors and actuators and control all data in and out. It also powers all devices.

Featuring 14 connectors, a fancy LED and advanced electronics the I/O module offers superior flexibility and functionality.

The control is done from the FCS Display Module.

Inputs/outputs:

- Power, 24V DC 2A max - LP12 2-pin
- Display Module connection; CAN bus + 24V - LP12 6-pin
- External relay module, control signal 0-5V / 4-20mA + Current measurement - LP12 7-pin
- 4x Relay outputs with current measurement, 1 reversible voltage - LP12 2-pin
- 4x CAN + 24V outputs with current measurement - LP12 5-pin
- 1x CAN extension - LP12 5-pin
- 2x PT1000 temperature sensor inputs - LP12 3-pin

Installation:

4 screw holes with 5mm diameter. Designed for countersunk screws.
